S79xxPI series fixed negative voltage monolithic integrated circuit voltage regulators are designed to complement series S7800 in a wide range of applications.

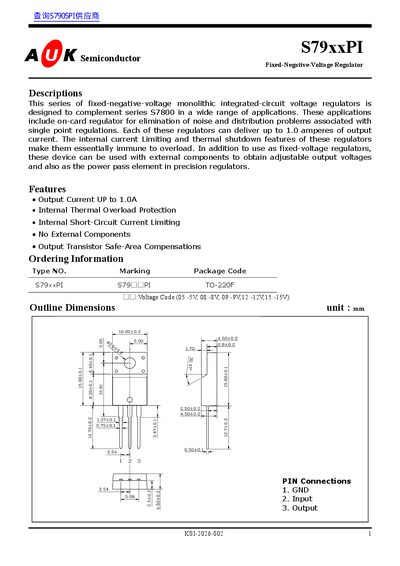

The AUK S79xxPI is a series of fixed-negative-voltage monolithic integrated-circuit voltage regulators designed to complement the S7800 series. These devices are intended for use as on-card regulators to eliminate noise and distribution problems associated with single-point regulation in general electronic equipment.
| Output Current | Up to 1.0A |
|---|---|
| Operating Input Voltage (S79xxPI) | -35 V |
| Power Dissipation (with Heatsink) | 20.8 W |
| Operating Junction Temperature | -30 ~ 125 °C |
| Output Voltage (S7905PI) | -4.8V to -5.2V |
| Output Voltage (S7915PI) | -14.4V to -15.6V |
The regulators can deliver up to 1.0 amperes of output current.
The operating junction temperature ranges from -30 to 125 °C.
