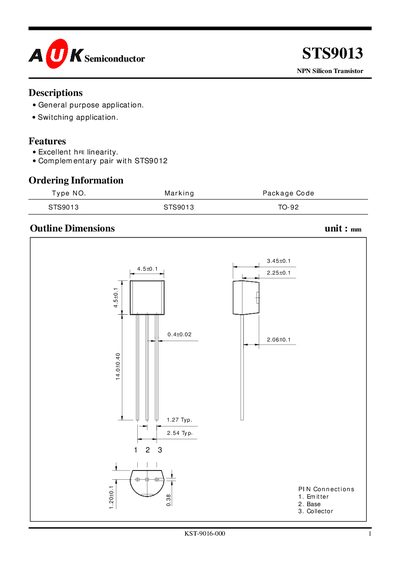

The STS9013 is an NPN silicon transistor that is suitable for general purpose and switching applications. It has excellent hFE linearity and complements the STS9012.
The document describes the STS9013, an NPN silicon transistor designed for general purpose and switching applications. It is noted as having excellent hre linearity and serves as a complementary pair to the STS9012. The device is packaged in a TO-92 case.
| Package Code | TO-92 |
|---|---|
| Collector-Base voltage | 40 V |
| Collector-Emitter voltage | 30 V |
| Emitter-Base voltage | 5 V |
| Collector current | 500 mA |
| Emitter current | -500 mA |
| Collector dissipation | 625 mW |
| Junction temperature | 150 °C |
It is designed for general purpose and switching applications.
The maximum collector current is 500 mA.
