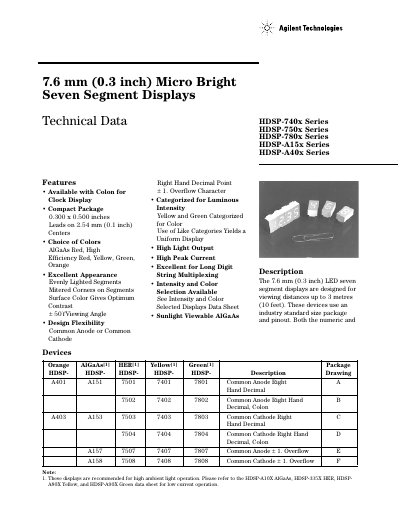

This document provides technical data and features of the 7.6 mm (0.3 inch) Micro Bright Seven Segment Displays, including available colors, compact package, design flexibility, etc.
The HDSP-740x series are 7.6 mm (0.3 inch) Micro Bright LED seven‑segment displays with options for common anode or common cathode, right‑hand decimal point, and a variety of colors (AlGaAs Red, High‑Efficiency Red, Yellow, Green, Orange). They feature a compact 0.300 × 0.500 in package with 2.54 mm lead spacing and are suitable for long digit strings and high ambient light environments.
Key specifications include luminous intensity up to 14 mcd per segment at 20 mA, forward voltage around 2.0 V, peak wavelength from 583 nm (Yellow) to 645 nm (Red), and operating temperature from –20 °C to +100 °C. The datasheet also provides binning information, mechanical options, and cleaning/soldering guidelines.
| Luminous Intensity per Segment (typical) | 14.0 mcd |
|---|---|
| Forward Voltage per Segment (typical) | 2.0 V |
| Peak Wavelength (typical) | 645 nm |
| Operating Temperature Range | –20 °C to +100 °C |
| Storage Temperature Range | –55 °C to +100 °C |
They are 7.6 mm (0.3 inch) single‑digit displays with a 0.300 × 0.500 in package and leads on 2.54 mm (0.1 in) centers.
Available colors include AlGaAs Red, High‑Efficiency Red, Yellow, Green, and Orange.
The displays operate from –20 °C up to +100 °C.
