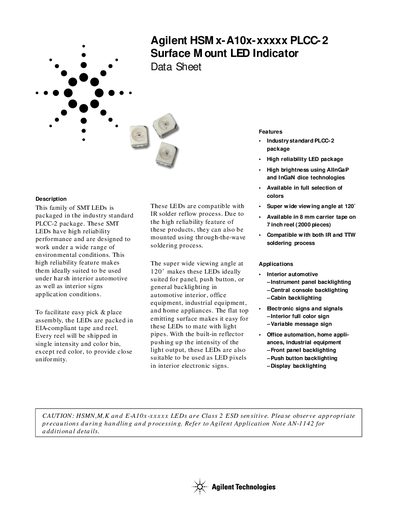

HSMx-A10x-xxxxx PLCC-2 Surface Mount LED Indicator is a SMT LED produced by Agilent. The LED uses the industry standard PLCC-2 package and has high reliability, high brightness, ultra-wide viewing angle and other characteristics. It is suitable for interior automotive, electronic signs, office automation, home appliances and other fields
The HSMx‑A10x‑xxxxx family of SMT LEDs is packaged in the industry‑standard PLCC‑2 package and offered in tape‑and‑reel format for easy pick‑and‑place assembly. They are designed for high reliability in harsh interior automotive, signage, office, industrial and home‑appliance environments, with a super‑wide 120° viewing angle and built‑in reflector for efficient backlighting.
The sheet lists detailed mechanical dimensions, electrical limits, optical performance, and binning options. It also includes part‑numbering conventions, recommended drive currents, and contact information for technical support.
| Peak Forward Current | 100 mA |
|---|---|
| Power Dissipation | 63 mW |
| Operating Temperature Range | 55 °C to +100 °C |
They are packaged in the industry‑standard PLCC‑2 package.
They are compatible with both IR solder reflow and through‑the‑wave soldering processes.
The LEDs have a super wide viewing angle of 120°.
