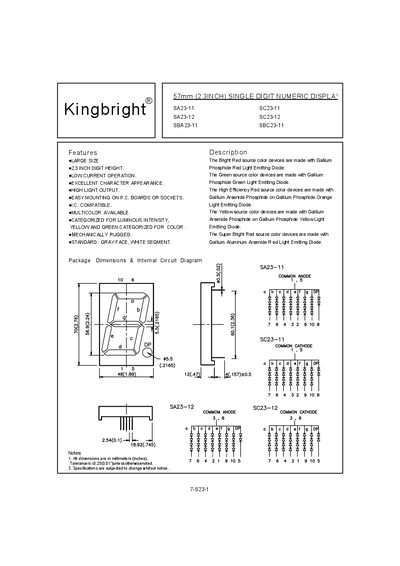

The Kingbright SA23-11 is a 57 mm (2.3 inch) single‑digit numeric LED display offering large size, low current operation, high light output and easy PCB mounting. It is available in multiple colors (Bright Red, High‑Efficiency Red, Green, Yellow, Super Bright Red) and both common‑anode and common‑cathode configurations.
The datasheet provides detailed package dimensions, internal circuit diagrams, selection guides, and extensive electrical and optical characteristics such as forward voltage, reverse voltage, power dissipation, and luminous intensity across temperature ranges.
| Digit height | 2.3 inches |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
The digit height is 2.3 inches.
All dimensions are given in millimeters (inches).
