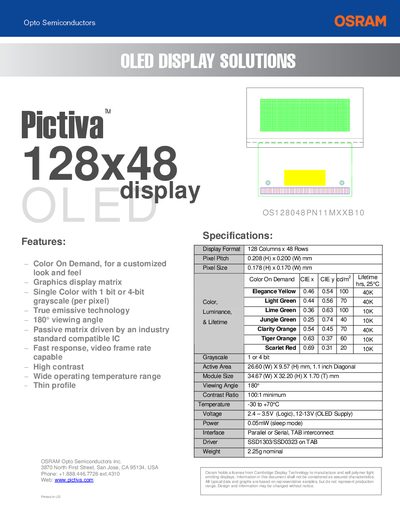

This document introduces the features and characteristics of the OSRAM Pictiva 128x48 display, including display format, pixel pitch, pixel size, color, brightness, lifetime, grayscale, active area, module size, viewing angle, contrast, and temperature
This manual describes the Osram Pictiva 128x48 OLED display, including its pixel pitch, active area, viewing angle, and electrical requirements. It also lists ordering part numbers for both 1‑bit and 4‑bit versions in several colors.
Technical details such as operating temperature range, voltage supplies, power consumption, interface options, and mechanical dimensions are provided, along with a pin description for integration into devices.
| Display Format | 128 Columns x 48 Rows |
|---|---|
| Pixel Pitch | 0.208 (H) x 0.200 (W) mm |
| Active Area | 26.60 mm (W) × 9.57 mm (H), 1.1 in diagonal |
| Viewing Angle | 180° |
| Contrast Ratio | 100:1 minimum |
| Operating Temperature | -30 °C to +70 °C |
| Voltage (Logic) | 2.4–3.5 V |
| Voltage (OLED Supply) | 12–13 V |
| Power (Sleep Mode) | 0.05 mW |
| Interface | Parallel or Serial, TAB interconnect |
| Weight | 2.25 g nominal |
| Module Size | 34.67 mm (W) × 32.20 mm (H) × 1.70 mm (T) |
The display operates from –30 °C to +70 °C.
It needs a logic voltage of 2.4–3.5 V and an OLED supply of 12–13 V.
The active area measures 26.60 mm (W) × 9.57 mm (H) with a 1.1‑inch diagonal.
It supports parallel or serial interfaces using a TAB interconnect.
