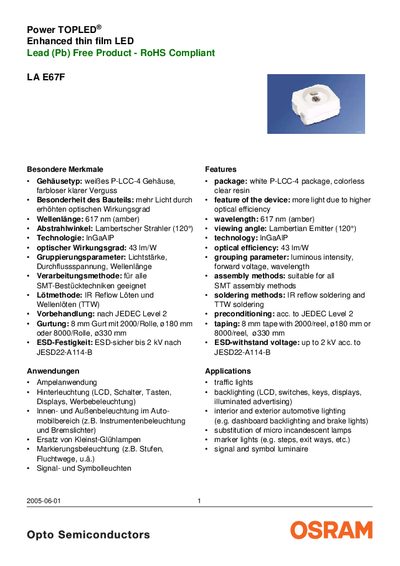

The document describes the features and characteristics of the LA E67F Power TOPLED® Enhanced thin film LED Lead (Pb) Free Product, including its high optical efficiency, wavelength of 617nm (amber), and a viewing angle of 120°.
The LA E67F is a TOPLED® amber LED with a peak wavelength of 617 nm, a Lambertian viewing angle of 120°, and an optical efficiency of 43 lm/W. It is supplied in a white P‑LCC‑4 package with clear resin and is RoHS‑compliant.
The document includes ordering information, maximum ratings, electrical characteristics, and recommended assembly methods such as IR reflow and TTW soldering. Applications cover traffic lights, backlighting, automotive interior and exterior lighting, and replacement of miniature incandescent lamps. This manual is written in German.
| Peak wavelength | 617 nm (amber) |
|---|---|
| Viewing angle | 120° (Lambertian) |
| Optical efficiency | 43 lm/W |
| Forward voltage (typ.) | 2.30 V |
| Maximum forward current | 70 mA (at 25 °C) |
| Operating temperature range | -40 °C to +100 °C |
| Power consumption | 190 mW |
| ESD withstand voltage | up to 2 kV |
The LA E67F emits at a peak wavelength of 617 nm (amber).
The device can handle a maximum forward current of 70 mA at 25 °C.
IR reflow soldering and TTW (thermal tape wave) soldering are recommended.
The LED is ESD‑safe up to 2 kV according to JESD22‑A114‑B.
