Hyper TOPLED® RG series are high brightness LEDs with an extremely wide viewing angle, ideal for backlighting and signal indication.

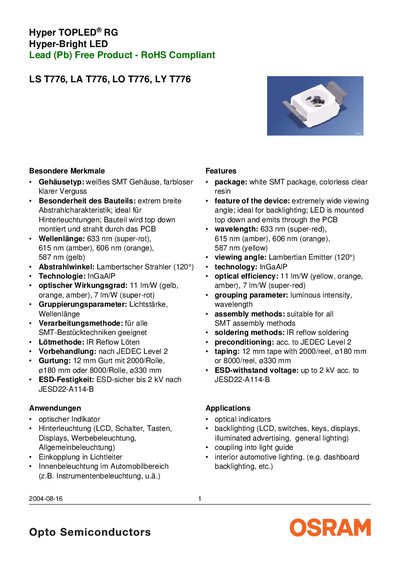

The LS/LA/LO/LY T776 series are high‑brightness, wide‑viewing‑angle LEDs designed for backlighting, optical indicators, and interior automotive lighting. They are supplied in a white SMT package with a clear resin and are RoHS‑compliant.
Key characteristics include a 120° Lambertian viewing angle, optical efficiencies up to 11 Im/W, and operating temperature range from –40 °C to +100 °C. Ordering information lists specific brightness and wavelength groups, with only one group shipped per reel. This manual is written in German.
| Operating temperature range | -40 °C to +100 °C |
|---|---|
| Forward voltage (typ, 20 mA) | 2.0 V |
| Forward current (max, 25 °C) | 30 mA |
| Optical efficiency (yellow, orange, amber) | 11 Im/W |
| Viewing angle | 120° Lambertian |
| Peak wavelength (super‑red) | 633 nm |
| ESD withstand voltage | 2 kV |
The LEDs operate from –40 °C up to +100 °C.
The typical forward voltage is 2.0 V.
The series is offered in super‑red (633 nm), amber (615 nm), orange (606 nm) and yellow (587 nm).
Only one brightness group is shipped on each reel; groups are not mixed.
