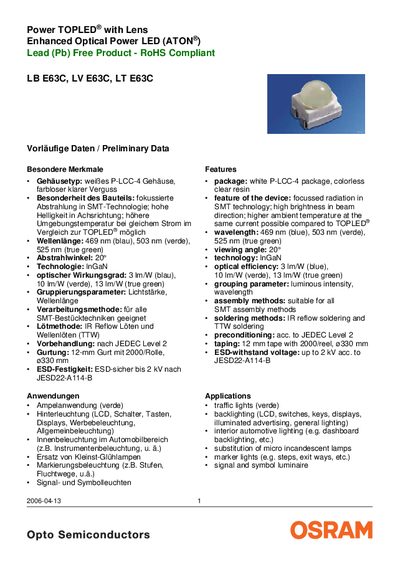

LB E63C, LV E63C, LT E63C are TOPLED® brand Power TOPLED® with Lens Enhanced Optical Power LED (ATON®) products, using white P-LCC-4 package, with wavelengths of 469nm (blue), 503nm (green), 525nm (true green), luminous flux of 3 lm/W (blue), 10 lm/W (green), 13 lm/W (true green), maximum working current of 350mA, maximum working voltage of 3.6V, and maximum working temperature of 85℃.
The OSRAM E63C Power TOPLED with Lens series (LB, LV, LT) provides focused radiation in SMT technology with high brightness in the beam direction. Available in blue (469 nm), verde (503 nm) and true‑green (525 nm) wavelengths, the devices feature a 20° viewing angle and high optical efficiency (up to 13 Im/W).
The datasheet lists electrical characteristics such as a typical forward voltage of 3.3 V at 30 mA, surge current up to 300 mA, and operating temperature range from –40 °C to +100 °C. Ordering information, brightness grouping, and recommended soldering methods (IR reflow and wave soldering) are also provided. This manual is written in German.
| Wavelength (blue) | 469 nm |
|---|---|
| Viewing angle | 20° |
| Optical efficiency (blue) | 3 Im/W |
| Forward current (test current) | 30 mA |
| Operating temperature range | -40 °C … +100 °C |
| Reverse voltage | 18 V |
IR reflow soldering and wave soldering (TTW) are recommended.
