This document describes the features and characteristics of OLED OLED Display Solutions 128x48. The product is RoHS compliant and available in white, blue, or area color options. It has low-power consumption for battery-powered devices and a 180° viewing angle. The benefits include an attractive appearance, low-cost graphic solution, and a thin structure suitable for mobile devices. The applications include mobile phone sub-display, MP3 player, mobile consumer devices, and industrial use.
The Pictiva 1.1‑inch OLED display offers a 128 × 48 pixel matrix with low‑power consumption, 180° viewing angle, and optional white, blue, or area‑color options. It is suited for mobile sub‑displays, MP3 players, other consumer devices, and industrial applications.

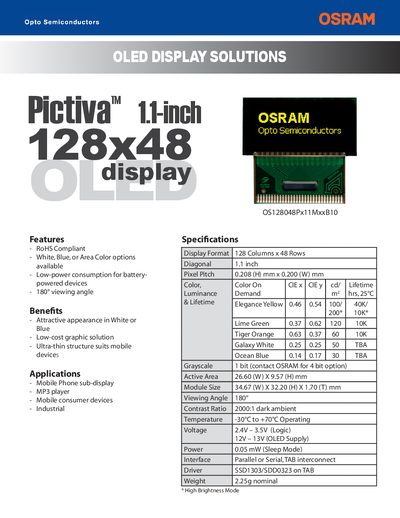

The document details the mechanical dimensions, active area, module size, and pin description, along with ordering part numbers for each color variant. Contact information and regulatory notes are also included.
| Display Format | 128 Columns x 48 Rows |
|---|---|
| Diagonal | 1.1 inch |
| Pixel Pitch | 0.208 mm (H) x 0.200 mm (W) |
| Active Area | 26.60 mm × 9.57 mm |
| Module Size | 34.67 mm × 32.20 mm × 1.70 mm |
| Viewing Angle | 180° |
| Contrast Ratio | 2000:1 (dark ambient) |
| Operating Temperature | -30°C to +70°C |
| Logic Voltage | 2.4 V – 3.5 V |
| OLED Supply Voltage | 12 V – 13 V |
| Sleep Mode Power | 0.05 mW |
| Interface | Parallel or Serial, TAB interconnect |
| Driver | D8D1303/SDD0323 on TAB |
| Weight | 2.25 g nominal |
The display provides a 180° viewing angle.
It operates from –30 °C to +70 °C.
The display requires 2.4 V to 3.5 V for logic operation.
Sleep mode power consumption is 0.05 mW.
