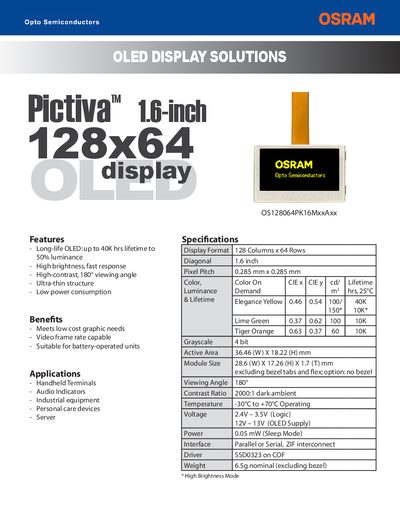

1.6-inch 128x64 OLED display, long-life OLED: up to 40K hours lifetime to 50% luminance, high brightness, fast response, high contrast, 180° viewing angle, ultra-thin structure, low power consumption, suitable for low cost graphic needs, video frame rate, suitable for battery-operated units
The Pictiva 1.6‑inch OLED display offers a 128 × 64 pixel matrix with long‑life operation (up to 40 k hrs to 50 % luminance), high brightness, fast response, and a 180° viewing angle. Its ultra‑thin structure and low power consumption make it suitable for handheld terminals, audio indicators, industrial equipment, personal‑care devices, and servers.
The datasheet provides detailed mechanical dimensions, pin descriptions, electrical characteristics, and ordering part numbers for four color variants (Elegance Yellow, Lime Green, Tiger Orange, Grayscale). Contact information for OSRAM Opto Semiconductors worldwide is also included.
| Display Format | 128 Columns x 64 Rows |
|---|---|
| Diagonal | 1.6 inch |
| Pixel Pitch | 0.285 mm x 0.285 mm |
| Viewing Angle | 180° |
| Contrast Ratio | 2000:1 (dark ambient) |
| Operating Temperature | -30 °C to +70 °C |
| Logic Voltage | 2.4 V – 3.5 V |
| OLED Supply Voltage | 12 V – 13 V |
| Sleep Mode Power | 0.05 mW |
| Weight | 6.5 g (nominal, no bezel) |
The display is rated for up to 40 000 hours to 50 % luminance.
It offers a 180° viewing angle.
The display operates from –30 °C to +70 °C.
Sleep mode power consumption is 0.05 mW.
