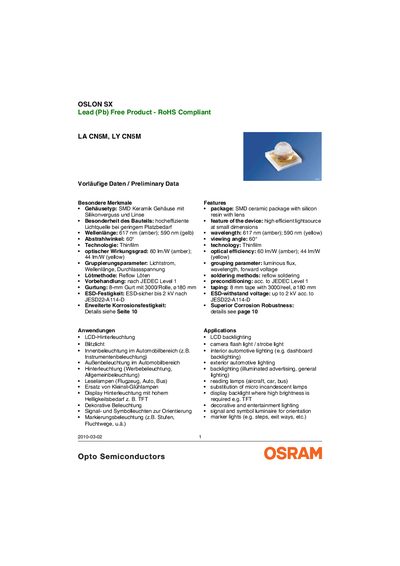

This document describes the features and characteristics of LA CN5M, LY CN5M OSLON SX lead (Pb) free products, including the package type, efficient lightsource, wavelength, viewing angle, and optical efficiency. The product is suitable for various applications such as LCD backlighting, flashlights, automotive interior and exterior lighting, advertising lighting, reading lamps, etc.
The OSLON SX series from OSRAM provides high‑efficiency SMD ceramic LEDs with silicon resin encapsulation and a built‑in lens. Two variants are offered: LA CN5M (amber) and LY CN5M (yellow), both featuring a 60° viewing angle and thin‑film technology.
Key applications include LCD backlighting, automotive interior and exterior lighting, signal and marker lights, and replacement of miniature incandescent lamps. The document lists ordering information, maximum ratings, and detailed electrical and optical characteristics. This manual is written in German.
| Wavelength (amber) | 617 nm |
|---|---|
| Viewing angle | 60° |
| Optical efficiency (amber) | 60 lm/W |
| Junction temperature limit | 150 °C |
The LEDs have a 60° viewing angle.
