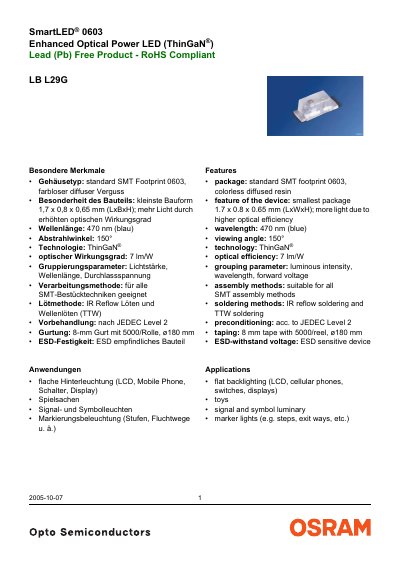

The document describes the features and characteristics of the LB L29G SmartLED® 0603 Enhanced Optical Power LED (ThinGaN®) lead-free product, including its small size, high optical efficiency, blue wavelength, and wide viewing angle.
The LB L29G SmartLED® 0603 is a lead‑free, RoHS‑compliant optical power LED using ThinGaN® technology. It offers a small 1.7 × 0.8 × 0.65 mm package, 470 nm peak wavelength, 150° viewing angle and an optical efficiency of 7 lm/W, making it suitable for flat backlighting in LCDs, mobile phones, switches and displays.
The document lists maximum ratings (e.g., forward current 20 mA, reverse voltage 5 V, power consumption 75 mW), thermal resistance values, and detailed packaging information such as 5000 devices per reel on 180 mm tape. It also covers moisture‑sensitive handling, recommended soldering methods (IR reflow and TTW), and grouping rules for wavelength, brightness and forward‑voltage bins. This manual is written in German.
| Package size | 1.7 x 0.8 x 0.65 mm |
|---|---|
| Peak wavelength | 470 nm |
| Viewing angle | 150° |
| Optical efficiency | 7 lm/W |
| Forward current (IF) | 20 mA |
| Power consumption (Ptot) | 75 mW |
| Storage temperature range | -40 … +100 °C |
| Tape and reel quantity | 5000 per reel, 180 mm tape |
The L29G comes in a 1.7 × 0.8 × 0.65 mm (L × W × H) package.
Each reel holds 5 000 devices on a tape with a 180 mm diameter.
IR reflow soldering and TTW (wave) soldering are recommended.
