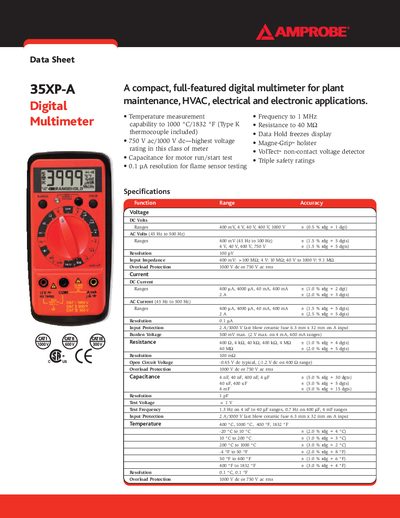

Amprobe 35XP-A Digital Multimeter Datasheet
The Amprobe 35XP-A is a compact, full‑featured digital multimeter designed for plant maintenance, HVAC, electrical and electronic applications. It offers voltage, current, resistance, capacitance, frequency, temperature, and non‑contact voltage measurements, with safety ratings and a magnetic holster for easy handling.
The datasheet lists detailed technical specifications, including measurement ranges, accuracy, input impedance, and environmental limits, as well as included accessories such as test leads, a K‑type thermocouple, and a Magne‑Grip™ holster. Warranty information and optional accessories are also provided.
Amprobe 5XP-A specifications
| DC Voltage Ranges | 400 mV, 4 V, 40 V, 400 V, 1000 V |
|---|---|
| Temperature Measurement Range | -20 °C to 1000 °C (‑4 °F to 1832 °F) |
| Display | 3‑3/4 digit LCD, max reading 3999 |
| Dimensions (H×W×D) | 155 mm × 72 mm × 32 mm |
| Weight | ≈ 400 g (including battery) |
| Battery Life | 150 h (carbon‑zinc), 300 h (alkaline) |
All Amprobe 5XP-A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the warranty period for the Amprobe 35XP-A?
The product is covered by a one‑year warranty.
What are the operating temperature limits for the meter?
It operates from 0 °C to 50 °C at less than 70 % relative humidity.
What is the maximum voltage rating of the Amprobe 15XP‑A?
The meter is rated for up to 750 V AC or 1000 V DC.
How long does the battery last in typical use?
The built‑in 9 V battery provides about 200 hours of typical operation.
What is the typical battery life of the 5XP‑A multimeter?
The meter provides about 200 hours of typical operation with a carbon‑zinc 9 V battery.
What are the operating temperature limits for the meter?
It operates from 0 °C to 50 °C at less than 70 % relative humidity.
