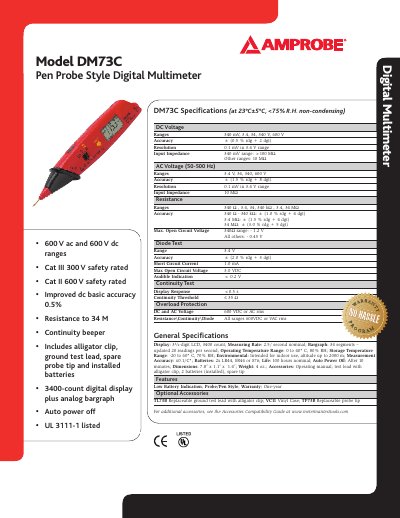

This document describes the specifications and features of the DM73C model pen probe style digital multimeter. The multimeter has a measurement range of 600V AC and DC, with safety ratings of CAT III 300V and CAT II 600V. It has an improved dc basic accuracy of 0.5%, resistance up to 34 MΩ, continuity beeper, and includes accessories such as an alligator clip, ground test lead, spare probe tip, and installed batteries.
The DM73C is a pen‑probe style digital multimeter offering 600 V AC and DC measurement ranges, Cat III 300 V and Cat II 600 V safety ratings, and a 3400‑count LCD with an analog bar graph. It provides accurate DC voltage, AC voltage, resistance, diode and continuity testing with resolutions down to 0.1 mV.
The unit includes an alligator‑clip lead, ground test lead, spare probe tip, and installed LR44 batteries. It features auto‑power‑off, low‑battery indication, and UL 3111‑1 listing, making it suitable for indoor use up to 2000 m altitude.
| DC Voltage Range | 340 mV, 3.4 V, 34 V, 340 V, 600 V |
|---|---|
| AC Voltage Range | 3.4 V, 34 V, 340 V, 600 V (50‑500 Hz) |
| Resistance Range | 340 Ω, 3.4 kΩ, 34 kΩ, 340 kΩ, 3.4 MΩ, 34 MΩ |
| Accuracy (DC Voltage) | ±(0.5 % rdg + 2 dgt) |
| Input Impedance (DC) | ≥100 MΩ (340 mV range), 10 MΩ (other ranges) |
| Measuring Rate | 2.5 samples/second nominal |
| Operating Temperature | 0 °C to 40 °C (80 % RH) |
| Battery Type | 2 × LR44, SR44 or S76 |
| Dimensions | 7.8" × 1.1" × 1.4" |
The DM73C uses two LR44, SR44, or S76 batteries.
It is Cat III 300 V safety rated and Cat II 600 V safety rated.
The package includes an alligator‑clip lead, ground test lead, spare probe tip, and installed batteries.
