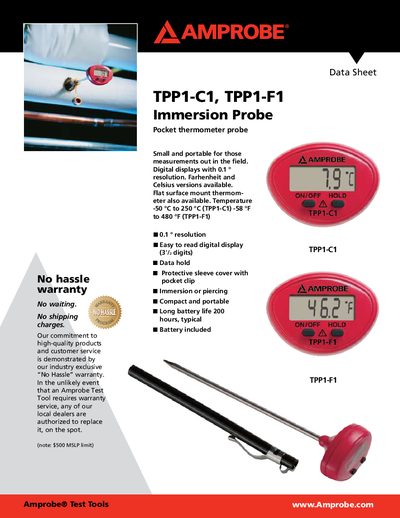

This document describes the features and characteristics of Amprobe® Test Tools' TPP1-C1 and TPP1-F1 immersion temperature probes, including temperature range, resolution, digital display, data hold function, compact and portable design.
The Amprobe TPP1-C1 and TPP1-F1 immersion probes are compact, portable thermometers designed for field measurements. They feature a digital LCD display with 0.1 °C resolution and are available in both Celsius and Fahrenheit versions.
The data sheet lists the probes' temperature range, power requirements, battery life, dimensions, and environmental ratings. It also includes warranty information and contact details for Amprobe support.
| Temperature range | -50 °C to 250 °C |
|---|---|
| Resolution | 0.1 °C |
| Power supply | 3 V CR2032 coin cell |
| Battery life | ≈200 hours |
| Dimensions | 40 mm × 30 mm × 160 mm |
| Weight | ≈16 g (0.56 oz) |
| Pollution degree (IP rating) | IP40 |
| Altitude rating | 2000 m (6561 ft) |
| Working temperature (environment) | 0 °C to 50 °C at <80 % RH |
| Storage temperature | 0 °C to 60 °C at <80 % RH |
The TPP1-C1 probe measures from –50 °C up to 250 °C.
The probe’s CR2032 battery provides approximately 200 hours of operation.
It uses a 3 V CR2032 coin‑cell battery.
The probe is rated IP40 for protection against solid objects.
