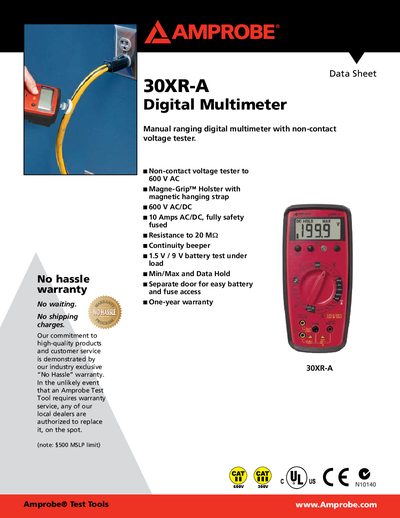

Amprobe® 30XR-A Digital Multimeter is a manual ranging digital multimeter with non-contact voltage tester. It features 600 V AC/DC voltage measurement range, 10 A AC/DC current measurement range, 20 MΩ resistance measurement range, 1.5 V / 9 V load battery test function, Min/Max and Data Hold function.
The Amprobe 30XR-A is a manual‑ranging digital multimeter with a non‑contact voltage detector up to 600 V AC. It offers a 3‑½‑digit LCD display with 1999 counts, 2.5‑second update rate, and safety‑fused 10 A AC/DC current measurement.
The datasheet lists detailed electrical specifications, environmental limits, dimensions, weight, and a full set of included and optional accessories such as test leads, a magnetic holster, and high‑voltage probes.
| Display resolution | 1999 counts |
|---|---|
| Display update rate | 2.5 sec (nominal) |
| Battery type | 9 V NEDA 1604, JIS OO6P, IEC 6F22 |
| Battery life | 200 hrs typical (carbon‑zinc) |
| Dimensions | 196 × 92 × 60 mm |
| DC Voltage range | 200 mV to 600 V |
| DC Voltage accuracy | ±(1 % rdg + 1 digit) |
| AC Voltage range | 200 mV to 600 V (45 Hz‑500 Hz) |
| AC Voltage accuracy | ±(1.5 % rdg + 4 digits) |
| Input impedance | 10 MΩ |
| Continuity audible indication | 752 + 252 |
The battery lasts about 200 hours typical with a carbon‑zinc cell.
It uses a 3‑½‑digit LCD with 1999 counts.
It comes with a one‑year warranty.
