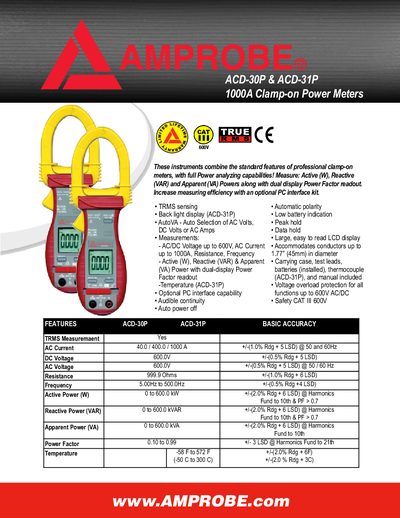

The ACD-30P and ACD-31P 1000A Clamp-on Power Meters combine the standard features of professional clamp-on meters, with full Power analyzing capabilities! Measure: Active (W), Reactive (VAR) and Apparent (VA) Powers along with dual display Power Factor readout. Increase measuring efficiency with an optional PC interface kit.
The ACD-30P and ACD-31P clamp‑on power meters from Amprobe provide comprehensive power analysis, measuring active (W), reactive (VAR) and apparent (VA) power with a dual‑display power‑factor readout. They feature true RMS sensing, back‑light LCD, auto‑range voltage selection, and optional PC interface for data logging.
Safety‑rated for CAT III 600 V, the meters include overload protection, low‑battery indication, peak‑hold, and a range of accessories such as PC interface kits, current transformers, thermocouple adapters, and carrying cases. Technical specifications cover voltage, current, resistance, frequency, temperature, and accuracy across multiple measurement ranges.
| AC Voltage Range | 0‑600 V |
|---|---|
| DC Voltage Range | 0‑600 V |
| Maximum AC Current | 1000 A |
| Power Factor Range | 0.10‑0.99 |
| Temperature Measurement Range | -58 °F to 572 °F |
The meter can measure up to 1000 A AC current.
It uses two standard 1.5 V AAA batteries.
Yes, an optional PC Interface kit with cable and software is available.
