The OPB916 consists of an infrared emitting diode and a Photologic photo integrated circuit, and it features choice of output configuration and low power consumption.
The OPB916 series are slotted optical switches with a deep slot for extended optical path reach. They offer a choice of output configurations, low power consumption, and are supplied with 24‑min 26 AWG wires. The housing is PVC insulated, UL‑rated, and includes dust‑protecting clear windows.

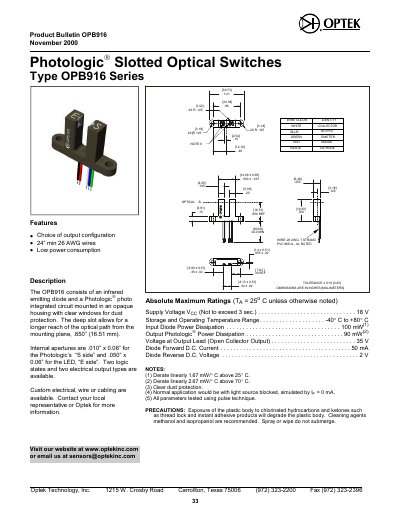

The bulletin lists absolute maximum ratings, detailed electrical characteristics, and part‑number guides. It also includes wiring diagrams for the four output types and recommended cleaning procedures for the plastic body.
| Operating Temperature Range | -40 °C to +80 °C |
|---|---|
| Output Photologic® Power Dissipation | 0.0005 W |
| Input Diode Forward Voltage | 1.30 V – 1.80 V |
| IR Reverse Current | 100 pA |
The OPB916 offers buffered with 10 kΩ pull‑up (B), buffered open‑collector (BOC), inverted with 10 kΩ pull‑up (I), and inverted open‑collector (IOC) outputs.
Clean the plastic body with methanol or isopropanol; avoid chlorinated hydrocarbons and ketones.
