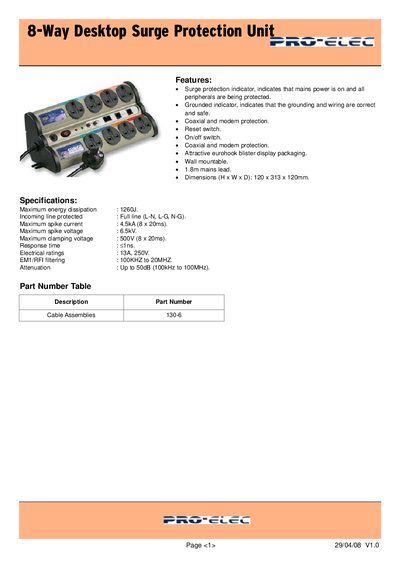

8-Way Desktop Surge Protection Unit is a product of Premier Farnell Group (hereinafter referred to as “Group”). It has a maximum energy dissipation of 1260J and can protect power, phone and network lines. It also has overvoltage protection, overcurrent protection, grounding protection and switch power protection functions.
The 8‑Way Desktop Surge Protection Unit offers comprehensive surge protection for mains power and peripheral connections. It features a surge protection indicator, grounded indicator, coaxial and modem protection, a reset switch, and an on/off switch, all housed in a wall‑mountable, eurohook blister display package with a 1.8 m mains lead.
Key specifications include a maximum energy dissipation of 1260 J, a response time of less than 1 ns, and filtering from 100 kHz to 20 MHz. The unit complies with international sales standards and is supported by Farnell sales offices worldwide.
| Maximum energy dissipation | 1260J |
|---|---|
| Incoming line protected | Full line (L‑N, L‑G, N‑G) |
| Maximum spike current | 4.5kA (8 × 20 ms) |
| Maximum clamping voltage | 500V (8 × 20 ms) |
| Response time | <1ns |
| Electrical ratings | 113A, 250V |
| EMI/RFI filtering range | 100 kHz to 20 MHz |
| Attenuation | Up to 50 dB (100 kHz to 100 MHz) |
| Dimensions (H × W × D) | 120 mm × 313 mm × 120 mm |
| Mains lead length | 1.8 m |
The unit can dissipate up to 1260 J of energy.
Its response time is less than 1 nanosecond.
International sales are handled by Farnell offices in multiple countries.
