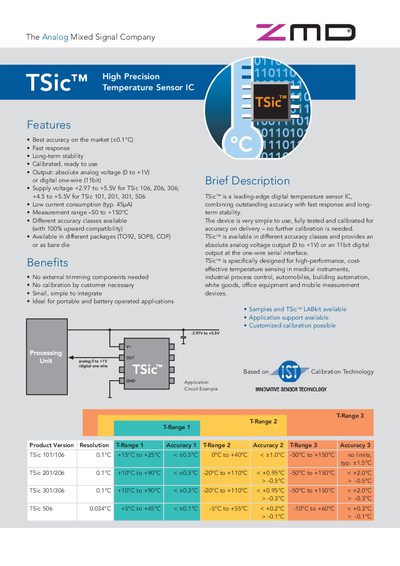

TSic™ is a leading-edge digital temperature sensor IC, combining outstanding accuracy with fast response and long-term stability.
The TSic™ temperature sensor IC provides best‑in‑class accuracy (±0.1 °C), fast response, long‑term stability and very low current consumption (typ. 45 yA). It can output an absolute analog voltage (0‑1 V) or a 1‑bit digital signal via a one‑wire interface, and operates from +2.97 V to +5.5 V (or +4.5 V to +5.5 V for certain models). The device is supplied in TO‑92, SOP‑8, COF packages or as a bare die.
TSic sensors are suited for medical instruments, industrial process control, automotive climate control, building automation, white‑goods, consumer electronics and portable battery‑powered devices. Ordering codes, application examples and a USB‑connectable LABkit for evaluation are also provided.
| Accuracy | ±0.1 °C |
|---|---|
| Supply Voltage | +2.97 V to +5.5 V (TSic 106, 206, 306) / +4.5 V to +5.5 V (TSic 101, 201, 301, 506) |
| Output Type | Analog voltage 0‑1 V or 1‑bit digital one‑wire |
| Measurement Range | −50 °C to +150 °C |
| Current Consumption | typ. 45 yA |
| Package Types | TO92, SOP8, COF, bare die |
The supply voltage is +2.97 V to +5.5 V for TSic 106, 206, 306, and +4.5 V to +5.5 V for TSic 101, 201, 301, and 506.
It provides an absolute analog voltage output from 0 to +1 V or a 1‑bit digital output via a one‑wire serial interface.
The sensor can measure temperatures from –50 °C up to +150 °C.
Typical current consumption is 45 yA.
