The TSic™ 306 is a low-cost, precision temperature sensor IC with digital output. It features low cost, high accuracy, a wide measurement range, and a communication range of over 10 meters.
The TSic™ 306 is a low‑cost, precision temperature sensor IC with a single‑wire 11‑bit digital serial output. It offers a wide measurement range, high accuracy, and low power consumption, making it suitable for building automation, automotive, industrial, and low‑power applications.

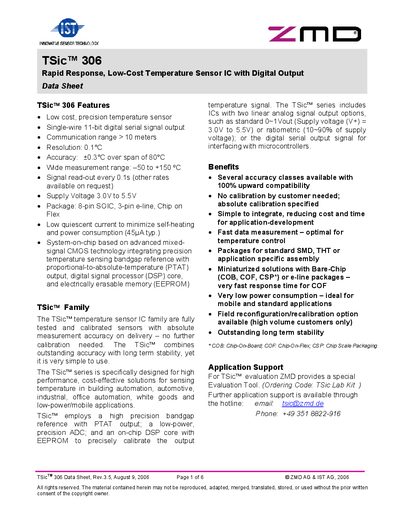

The datasheet details electrical ratings, pin configurations, package options, and example output codes. It also includes contact information for ZMD sales and distribution partners worldwide.
| Resolution | 0.1°C |
|---|---|
| Accuracy | +0.3°C over 80°C span |
| Temperature measurement range | -50°C to +150°C |
| Supply voltage | 3.0 V to 5.5 V |
| Package | 8‑pin SOIC (SOP8), also e‑line, THT, Chip‑on‑Flex |
| Digital output resolution | 11‑bit |
| Communication range | >10 m |
| Output load capacitance | 15 nF |
The TSic 306 measures temperatures from –50 °C to +150 °C.
It operates from 3.0 V to 5.5 V supply voltage.
The sensor provides an 11‑bit digital serial output.
