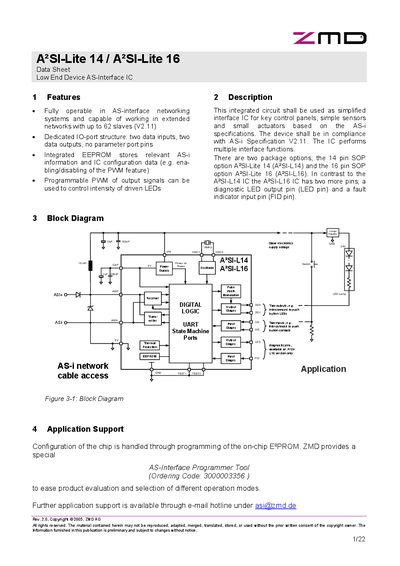

A²SI-Lite 14/16 Data Sheet is the data sheet for the low-end device AS-Interface IC. The data sheet provides information about the features, description, block diagram and more about A²SI-Lite 14/16.
The A2SI-Lite 14 and A2SI-Lite 16 are low‑end AS‑Interface ICs intended for simple control panels, sensors and small actuators. Two package options are offered: a 14‑pin SOP version (A2SI-Lite 14) and a 16‑pin SOP version (A2SI-Lite 16) with additional diagnostic LED and fault‑indicator pins.
Key features include programmable EEPROM configuration, PWM‑controlled LED output, and full compliance with AS‑Interface Specification V2.11. Electrical specifications cover supply voltage, power dissipation, temperature range, and pin characteristics. Application support, ordering information and contact details are provided by ZMD AG.
| Supply voltage (VVIN) | 12 – 31.6 V |
|---|---|
| Total power dissipation | 500 mW |
| Operating temperature range | -25 °C to 85 °C |
| Crystal frequency | 16 MHz |
| Package pin count | 14‑pin SOP (A2SI-Lite 14) or 16‑pin SOP (A2SI-Lite 16) |
The positive supply voltage (VVIN) can be between 12 V and 31.6 V.
The A2SI-Lite 14 version is offered in a 14‑pin SOP package.
The on‑chip oscillator requires a 16 MHz crystal.
