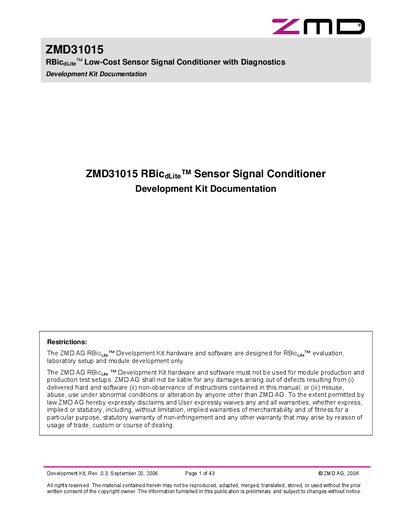

This document is the documentation for the ZMD31015 RBicdLite™ Sensor Signal Conditioner Development Kit. It introduces the hardware and software design of the kit and explains how to use it.
This manual describes the ZMD31015 RBicite™ low‑cost sensor signal conditioner development kit. It includes a list of kit contents, a description of the development board, and the software needed to communicate with the sensor IC.
The document walks through USB driver installation on Windows, explains how to verify the virtual COM port, and details the calibration sequence and troubleshooting tips for the board and software.
| ADC resolution | 12‑bit |
|---|---|
| DAC resolution | 12‑bit |
| Reset button | present |
| Chip socket | SOP‑8 socket for RBicite™ chip |
| VDD adjustment | potentiometer |
A 5x86‑compatible PC with at least 32 MB RAM, 20 MB free hard‑drive space, a USB port, and Windows 98/ME/2000/XP installed.
Connect the board to a USB port, let the Found New Hardware wizard appear, choose to install the driver from the CD‑ROM, and finish the wizard.
Open Device Manager and look for “USB Serial Port (COMx)” under Ports (COM & LPT); the COM number (usually 3 or 4) is used by the software.
The calibration sequence programs coefficients into the sensor IC and stores them in EEPROM so the conditioner provides accurate output.
