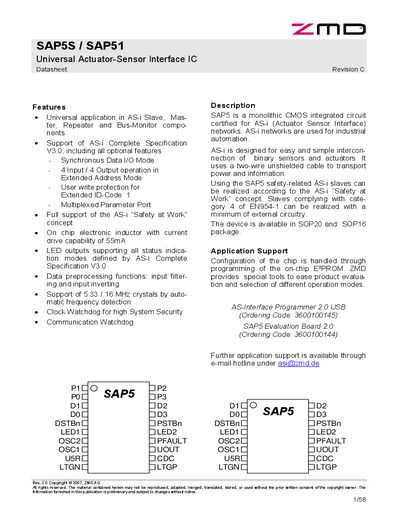

SAP5S / SAP51 is a monolithic CMOS integrated circuit certified for AS-i (Actuator Sensor Interface) networks, supports AS-i Complete Specification V3.0, supports synchronous data I/O mode, 4 input / 4 output operation in extended address mode, user write protection extended ID-Code 1 and multiplexed parameter port.
The SAP5S/SAP51 is a monolithic CMOS IC certified for AS‑i (Actuator Sensor Interface) networks used in industrial automation. It supports AS‑i Complete Specification V3.0, safety‑at‑work features, synchronous data I/O, extended address mode, and LED status indication.
The device is offered in SOP20 and SOP16 packages, with absolute maximum ratings, operating temperature range of –25 °C to 85 °C, and detailed pin‑out information. Contact and ordering details are provided for ZMD sales offices worldwide.
| Supply voltage range (Vitor) | 16 V – 34 V |
|---|---|
| Operating temperature range | -25 °C to 85 °C |
| Maximum output sink current per pin | 10 mA |
| Failure Rate at 85 °C | 150 FIT |
| Humidity class | Level 4 (JEDEC‑020A) |
| Supported crystal frequencies | 5.333 MHz or 16.000 MHz |
The device is available in SOP20 and SOP16 packages.
Each output pin can sink up to 10 mA.
It supports either a 5.333 MHz or a 16.000 MHz crystal, detected automatically.
The device operates from –25 °C up to 85 °C.
