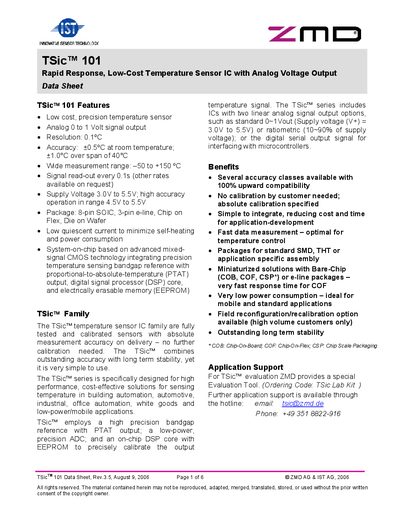

TSic™ 101 is a rapid response, low-cost temperature sensor IC with analog voltage output. It features low cost, precision temperature sensing, wide measurement range, and high accuracy.
The TSic 101 temperature sensor IC from ZMD provides a precision analog voltage output (0‑1 V) with a resolution of 0.1 °C and accuracy of ±0.5 °C at room temperature. It operates from a supply voltage of 3.0 V to 5.5 V and is offered in several package types, including SOP8, e‑line, and chip‑on‑flex.
Designed for building automation, automotive, industrial and low‑power applications, the device includes on‑chip calibration, a low‑quiescent current design to minimise self‑heating, and optional field re‑calibration for high‑volume customers.
| Resolution | 0.1 °C |
|---|---|
| Accuracy (room temperature) | ±0.5 °C |
| Accuracy (40 °C span) | ±1.0 °C |
| Measurement range | ‑50 °C to +150 °C |
| Supply voltage | 3.0 V to 5.5 V |
| Analog output voltage | 0 V to 1 V |
| Package types | 8‑pin SOIC, 3‑pin e‑line, Chip on Flex, Die on Wafer |
| Typical lifetime at 140‑150 °C | ≥1500 h |
| Typical lifetime at 125‑140 °C | ≥3000 h |
The TSic 101 measures temperatures from –50 °C up to +150 °C.
The device operates with a supply voltage between 3.0 V and 5.5 V.
It provides a linear analog output from 0 V to 1 V.
The TSic 101 is offered in SOP8, e‑line, chip‑on‑flex and wafer‑level packages.
