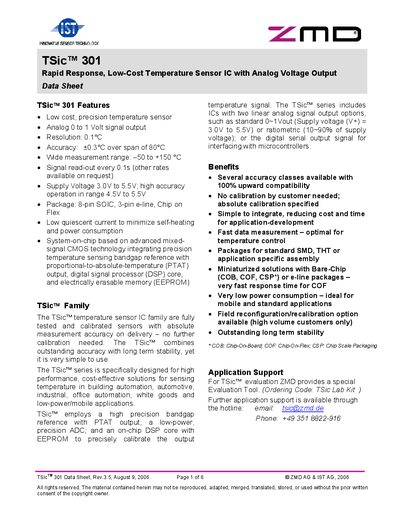

The TSic™ 301 is a high precision, low cost temperature sensor IC with analog voltage output.
The TSic 301 temperature sensor IC provides precise temperature measurement with a resolution of 0.1 °C and an accuracy of ±0.3 °C over a wide range. It operates from a 3.0 V to 5.5 V supply and outputs a linear 0‑1 V analog signal.
The device is offered in several packages, including an 8‑pin SOIC, e‑line, and chip‑on‑flex options, and is suited for building automation, automotive, industrial, and low‑power applications. ZMD supplies evaluation tools and worldwide sales support.
| Resolution | 0.1 °C |
|---|---|
| Accuracy | ±0.3 °C (over 80 °C span) |
| Measurement range | -50 °C to +150 °C |
| Package | 8‑pin SOIC (SOP8) and other options |
It measures temperatures from –50 °C to +150 °C.
The device provides a linear analog output of 0 V to 1 V corresponding to temperature.
It is offered in an 8‑pin SOIC (SOP8), e‑line, 3‑pin THT, and chip‑on‑flex packages.
