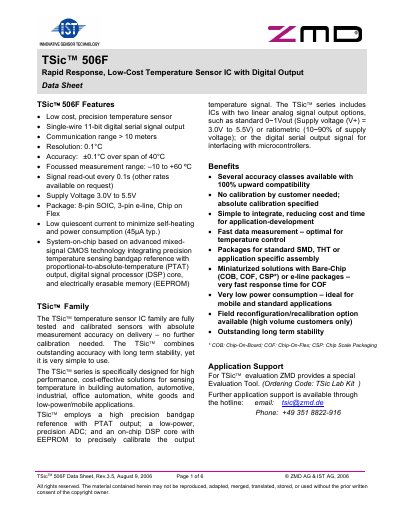

The TSic 506F is a low-cost, high-precision temperature sensor with single-wire 11-bit digital serial signal output.
The TSic 506F is a rapid‑response temperature sensor IC that provides a single‑wire 11‑bit digital output. It operates from a 3.0 V to 5.5 V supply, offers 0.1 °C resolution, ±0.1 °C accuracy, and can communicate over distances greater than 10 meters.
The device is offered in several packages, including an 8‑pin SOIC, e‑line, and chip‑on‑flex options. ZMD supplies evaluation kits and technical support for integration into building automation, automotive, industrial, and low‑power applications.
| Resolution | 0.1 °C |
|---|---|
| Accuracy | ±0.1 °C |
| Measurement Range | -10 °C to +60 °C |
| Communication Range | >10 meters |
The sensor measures temperatures from –10 °C up to +60 °C.
It provides a resolution of 0.1 °C with an accuracy of ±0.1 °C.
The digital signal can be transmitted over distances greater than 10 meters.
