The 3225M24 Miniature IEPE Accelerometer is a high-performance miniature accelerometer from Dytran that is suitable for a variety of applications. It has a sensitivity of 100 mV/g and can operate in a range of ±50 g. The accelerometer uses a 3-56 connector that is compatible with Dytran 6003AXX cables.
The Dytran 3225M24 is a miniature IEPE accelerometer designed for high‑frequency vibration measurement. It features a titanium case, a piezoceramic planar shear sensing element, and a 3‑56 radially mounted connector that mates only with Dytran cable model 6003AXX.

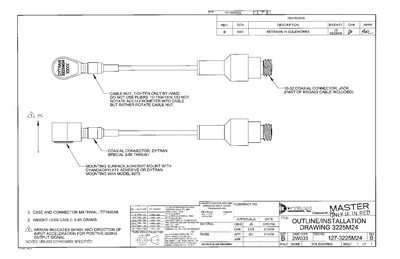

The handbook lists the device’s physical dimensions, performance parameters such as 100 mV/g sensitivity and a 40 kHz resonant frequency, and environmental limits including a temperature range of –60 °F to +220 °F. Mounting is achieved with a flat adhesive surface using cyanoacrylate or Dytran mounting wax, and the package includes a removal wrench and small petro wax accessories.
| Weight | 1 gram |
|---|---|
| Size (DIA x LENGTH x HEIGHT) | 0.25 x 0.43 x 0.215 inch |
| Mounting provision | Flat mounting surface for adhesive mount |
| Connector | 3‑56 radially mounted |
| Case material | Titanium |
| Sensitivity | 100 mV/g (±10%) |
| Full‑scale range | +50 g |
| Frequency response | 2 to 10,000 Hz (±10%) |
| Mounted resonant frequency | 40 kHz |
| Maximum vibration | 400 grms |
| Maximum shock | 5000 gpk |
| Temperature range | -60 °F to +220 °F |
| Supply current (max) | 20 mA |
| Bias voltage | +11 V to +13 V |
| Output polarity | Positive |
The device weighs 1 gram.
It uses a flat mounting surface for adhesive mount, either with cyanoacrylate adhesive or Dytran mounting wax model 6273.
The accelerometer has a sensitivity of 100 mV/g (±10%).
Maximum vibration is 400 grms and maximum shock is 5000 gpk.
