The document provides specifications and features of the Dytran 3220E LIVM Miniature Accelerometer, including weight, size, sensitivity, frequency response, temperature range, etc.
The Dytran 3220E is a miniature quartz planar shear accelerometer designed for high‑frequency response applications. It features a titanium alloy base, cap, and connector, and is supplied with a 2‑56 mounting screw assembly.

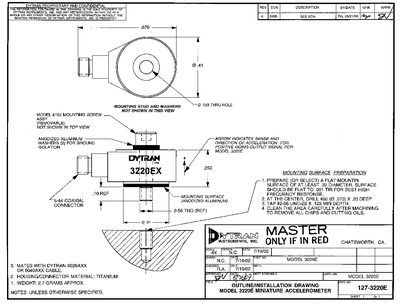

The datasheet provides detailed physical dimensions, performance parameters such as sensitivity and frequency response, electrical characteristics including supply voltage and output impedance, as well as mounting surface preparation steps and recommended accessories.
| Weight | 2.7 |
|---|---|
| Size (Diameter x Height) | 0.41 x 0.25 |
| Full‑Scale Range | ±500 G |
| Frequency Response | 1 – 5,000 Hz (+5%) / 0.66 – 10,000 Hz (+15%) |
| Natural Frequency (mounted) | >33 |
| Output Impedance (typical) | 100 |
| Output Bias Voltage | 10 |
| Electrical Isolation (case to mounting surface) | 10 GΩ min |
The accelerometer weighs approximately 2.7 grams.
A radially mounted 5‑44 coaxial connector is used.
