The 3225M7 miniature linear accelerometer is a product produced by Dynatran company. It is characterized by light weight, small size, high sensitivity, and can be widely used in industrial, medical, scientific research and other fields.

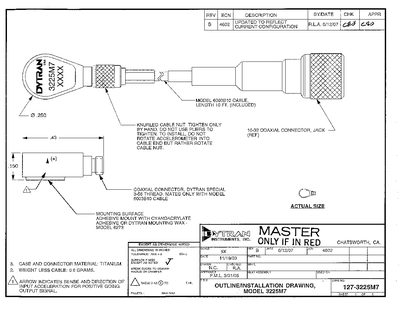

This handbook describes the Dytran 3225M7 miniature LIVM accelerometer, including its physical dimensions, mounting options, and connector type. Installation notes cover proper cable handling, nut tightening, and adhesive or wax mounting methods.
A full specifications table lists weight, size, case material, sensitivity, frequency response, electrical limits, and environmental ratings, along with the supplied accessories such as a 10‑ft coaxial cable, installation wrench, and mounting wax.
| Weight | 0.6 grams |
|---|---|
| Size (Diameter x Length x Height) | 0.25 x 0.43 x 0.150 inches |
| Mounting provision | Flat mounting surface for adhesive mount |
| Connector | 3‑56 jack (radially mounted) |
| Case material | Titanium |
| Sensitivity (nominal) | 1.0 mV/V/G |
| Frequency response | 1.6 to 10,000 Hz |
| Supply voltage range | +7 to +9 VDC |
| Maximum temperature | -60 °F to 250 °F |
| Output impedance (typ.) | 100 Ω |
A 10‑ft Model 6003B10 coaxial cable with a 3‑56 plug is supplied.
Mount it on a flat adhesive surface using cyanoacrylate adhesive or Dytran mounting wax.
The device should be powered with +7 to +9 VDC.
It operates from –60 °F up to 250 °F.
