Specifications for 3035M18 LIVM accelerometers

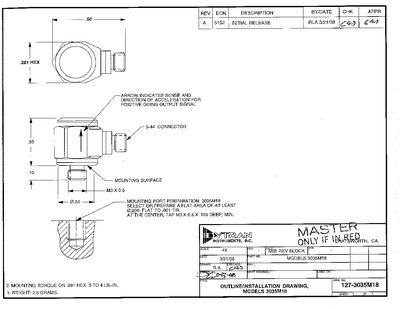

The Dytran 3035M18 is a miniature accelerometer designed for high‑frequency vibration measurement. It features a 0.281 × 0.33 in. stainless‑steel housing with a radially mounted 5‑44 coaxial connector and an integral M3 × 0.5 stud for mounting.
The device provides a sensitivity of +10 % 10 mV/g, a full‑scale output of +5 V for ±500 g, and operates over a temperature range of –60 °F to +250 °F. Electrical supply is 18‑30 V with a typical current draw of 2‑20 mA.
| Weight | 2.5 grams |
|---|---|
| Size (Hex x Height) | 0.281 x 0.33 inches |
| Mounting Provision | M3 × 0.5 integral stud |
| Connector | Radially mounted 5‑44 coaxial |
| Housing Material | 300 series stainless steel |
| Sensitivity | +10 % 10 mV/g |
| Full‑Scale Output | +5 V for ±500 g |
| Frequency Range | 0.5 – 10 kHz |
| Resonant Frequency | 45 kHz (nominal) |
| Supply Voltage Range | 18 – 30 V |
| Supply Current | 2 – 20 mA |
| Output Impedance | Typical 100 Ω |
| Temperature Range | -60 °F to +250 °F |
| Maximum Vibration/Shock | 600 g / 3000 g pk |
The 3035M18 weighs 2.5 grams.
It operates on a supply voltage range of 18 V to 30 V.
The nominal resonant frequency is 45 kHz.
It has an integral M3 × 0.5 stud for mounting and a radially mounted 5‑44 coaxial connector.
