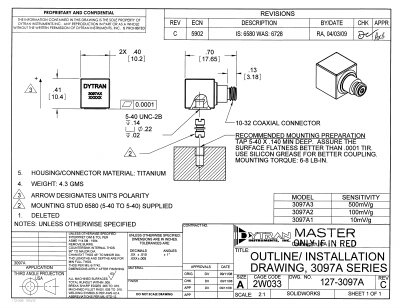

This document is about the technical specifications of the 3097A1 accelerometer, including the accelerometer's sensitivity, frequency response, time constant, operating temperature, etc.
The 3097A series from Dytran includes three miniature, hermetically sealed accelerometers (3097A1, 3097A2, 3097A3) designed for industrial and research vibration measurement. Each model offers high linearity and a wide frequency response, with accessories such as calibration certificates and mounting studs.
Key performance data include sensitivities of 10 mV/g (A1), 100 mV/g (A2) and 500 mV/g (A3), frequency response from 0.3 Hz to 5 kHz (up to 10 kHz for higher‑range versions), and operating temperatures from –60 °F to 200 °F. Electrical specifications feature a supply current of 2–20 mA, compliance voltage of +18 to +30 V, and a 100 Ω output impedance. This manual is written in Chinese.
| 3097A2 Sensitivity | 100 mV/g |
|---|---|
| 3097A3 Sensitivity | 500 mV/g |
| Frequency Response | 0.3 to 5,000 Hz |
| Operating Temperature | -60 to 200 °F |
| Weight | 0.15 oz (4.3 g) |
| Housing Material | Titanium |
| Sensing Element | Ceramic |
| Supply Current | 2 to 20 mA |
| Compliance Voltage | +18 to +30 V |
| Output Impedance | 100 Ω |
| Maximum Vibration | 600 G peak |
| Maximum Shock | 5000 G peak |
The 3097A3 model has a sensitivity of 500 mV/g.
The series operates from –60 °F to 200 °F.
They require a supply current between 2 mA and 20 mA.
The housing and connector are made of titanium.
