The 3224A1 accelerometer has a small footprint, high sensitivity, and a good temperature range, measuring 0.03 - 2500 Gpeak acceleration.

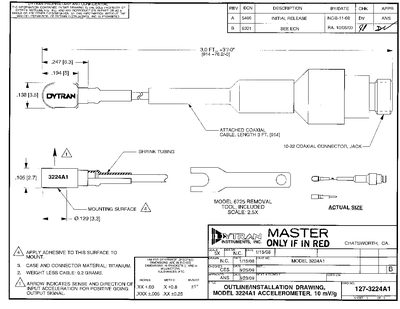

The Dytran 3224A1 is a miniature IEPE accelerometer designed for high‑sensitivity vibration measurement. It features a titanium case, a 10‑32 coaxial connector, and an integral 3 ft cable, making it suitable for adhesive or jack‑mount installations.
The datasheet lists key performance parameters such as 10 mV/g sensitivity, a frequency response from 0.15 Hz to 60 kHz, and operating temperature from –60 °C to 300 °C. Supplied accessories include a removal wrench, mounting wax, and an ISO‑17025 calibration certificate.
| Sensitivity | 10 mV/g |
|---|---|
| Weight (less cable) | 0.007 oz |
| Case material | Titanium |
| Connector | 10‑32 coaxial connector, jack |
| Frequency response | 0.15 Hz to 60 kHz |
| Operating temperature range | -60 °C to 300 °C |
The 3224A1 provides a sensitivity of 10 mV per g of acceleration.
It uses a 10‑32 coaxial connector with a jack at the end of the integral cable.
The package includes a Model 6725 installation/removal wrench, a sample of small petro mounting wax, and an ISO‑17025 calibration certificate.
A flat mounting surface for adhesive mount is recommended.
