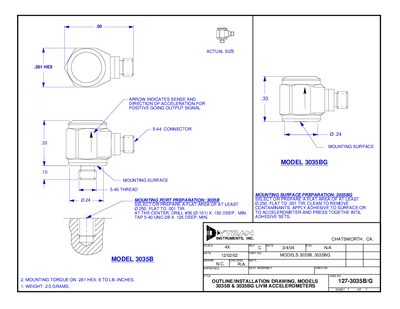

This guide provides detailed instructions for preparing the mounting surface and mounting port of the Dytran 3035B and 3035BG LIVM accelerometers, including surface flatness, drilling specifications, and adhesive application. It also lists the mechanical dimensions, weight, and torque requirements for proper installation.
In addition, the document contains the full technical specifications of the accelerometers, covering sensitivity, frequency range, noise floor, temperature limits, electrical supply requirements, and output characteristics. These data help users verify that the sensor meets the performance needs of their measurement applications.
| Weight | 2.5 grams |
|---|---|
| Frequency range | 0.5 to 10 kHz (±5%) |
| Resonant frequency | 45 kHz |
| Noise floor | 0.007 g rms |
| Temperature range | -60 to +250 °F |
| Mounting torque | 8 lb‑in |
| Output impedance | 100 Ω (typ.) |
| Supply compliance voltage | +18 to +30 V |
Select or prepare a flat area of at least Ø 0.250 in, flat to .001 TIR, clean to remove contaminants, apply adhesive to the surface or accelerometer, and press until the adhesive sets.
The mounting torque on the .281 hex mounting surface should be 8 lb‑in.
They are rated for temperatures from –60 °F to +250 °F.
