This product is a gravity sensor with a measuring range of 500g-2500g, resolution of 0.017g-0.03g, working temperature range of -60℃-300℃, TC of 1.1-1.5 seconds, and epoxy sealed cable connection.
The 3224A3 is an IEPE accelerometer with a planar shear piezoceramic sensing element, designed for a wide temperature range and high frequency response. It features a titanium case, epoxy‑sealed cable, and a low‑noise output suitable for vibration and shock measurements.

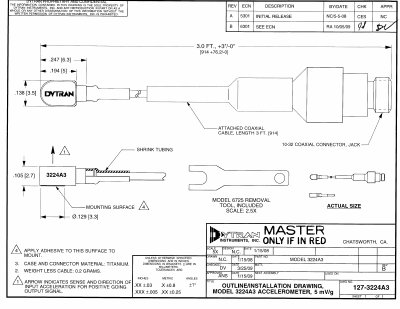

The handbook lists physical dimensions, supplied accessories, electrical characteristics, and performance specifications such as sensitivity, frequency response, and noise floor. It also includes mounting provisions and environmental limits for proper installation and use.
| Model Number | 3224A3 |
|---|---|
| Weight | 0.2 grams |
| Case Material | Titanium |
| Sensing Element | Planar Shear Piezoceramic |
| Frequency Response | 0.4 to 20000 Hz |
| Resonant Frequency | >95 kHz |
| Noise Floor | 0.025 g rms |
| Temperature Range | -60 to +300 °F |
| Compliance Voltage Range | 18 to +30 V |
| Output Impedance | 100 Ω |
| Bias Voltage | +8 to +10 VDC |
The accelerometer operates from –60 °F to +300 °F (–51 °C to +149 °C).
