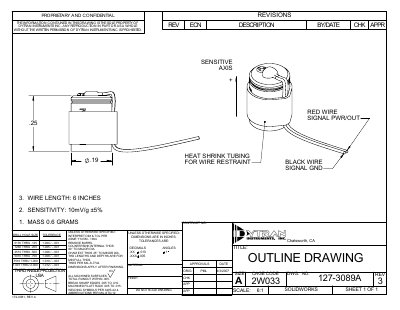

This document is about the third angle projection drawing of USA standard 172-0081, which describes the manufacturing standards, dimensional requirements, materials, and welding symbols of the product.
The Dytran 3089A is an IEPE accelerometer designed for high‑frequency vibration measurement. The data sheet provides detailed physical dimensions, wiring information, and housing material, as well as performance parameters such as sensitivity, range, and noise floor.
Key performance figures include a sensitivity of 10 mV/g (±5%), a resonant frequency of 50 kHz, and a frequency response from 1 Hz to 10 kHz. Environmental limits, electrical supply requirements, and mounting details are also listed for integration into test systems.
| Weight | 0.6 grams |
|---|---|
| Size (Diameter x Height) | 0.19 x 0.25 inch |
| Wire Length | 6 inches |
| Housing Material | 300 Series Stainless Steel |
| Full‑Scale Range | ±500 g for ±5 V output |
| Frequency Range | 1 Hz to 10 kHz (±10%) |
| Resonant Frequency | 50 kHz |
| Equivalent Electrical Noise Floor | 0.0014 g rms |
| Transverse Sensitivity | max 5% |
| Strain Sensitivity | 0.012 g/µε @250µε |
| Maximum Vibration/Shock | ±600 g / ±3000 g |
| Temperature Range | -60 °F to +250 °F |
| Thermal Sensitivity Coefficient | 0.03 %/°F |
| Compliance Voltage Range | +18 V to +30 V |
| Output Impedance (typ.) | 100 Ω |
| Bias Voltage | +10 V |
| Discharge Time Constant | 0.5 s |
| Polarity | positive |
| Electrical Isolation | case grounded |
The resonant frequency is specified as 50 kHz.
It can operate from –60 °F up to +250 °F.
The integrated output wire is 6 inches long.
