This document is the technical manual of the 3225A1 accelerometer. It introduces the characteristics, specifications, performance, etc. of the sensor.

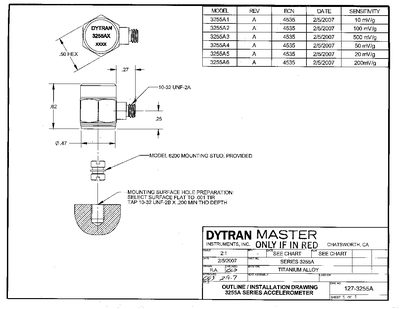

The 3255A series is a hermetically sealed IEPE accelerometer offered in several sensitivity options (10‑500 mV/g). The sheet includes an outline drawing, mounting stud information, and a list of supplied accessories such as a calibration certificate and a Model 6200 mounting stud.
Key performance specifications are presented, covering frequency response (1‑10 kHz), operating temperature (‑60 °F to +250 °F), and electrical characteristics. The document also notes environmental limits for vibration, shock, and temperature, and provides typical low‑frequency response curves for each model.
| Sensitivity (100 mV/g) | 100 mV/g |
|---|---|
| Sensitivity (500 mV/g) | 500 mV/g |
| Operating Temperature | -60 to +250 °F |
It operates between –60 °F and +250 °F.
A Model 6200 mounting stud (quantity 1) is supplied.
