This document describes the features and performance specifications of model 3023A5 accelerometer, including miniature size, temperature stability, and weight.

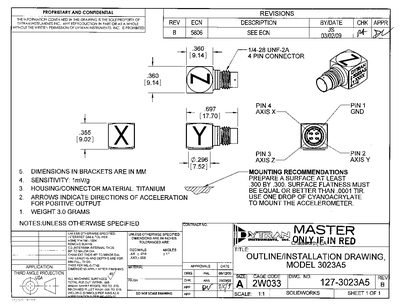

The Dytran 3023A5 is a miniature, three‑axis IEPE accelerometer designed for high‑frequency vibration measurement. It features a titanium housing, 1 mV/g sensitivity, and a weight of only 3 grams.
The data sheet provides detailed performance specifications, including a measurement range of 5000 g, frequency response from 1.2 Hz to 10 kHz, and environmental limits such as -60 °F to 250 °F operating temperature and 7000 g/6000 g peak shock/vibration ratings.
| Sensitivity | 1 mV/g |
|---|---|
| Weight | 3 grams |
| Housing Material | Titanium |
| Measurement Range | 5000 g pk |
| Frequency Range | 1.2 Hz to 10 kHz |
| Resonance Frequency | 30 kHz |
| Supply Current | 2 mA to 20 mA |
| Compliance Voltage | 18 V to 30 V |
| Output Bias (Room Temp) | 8.0 V to 10.0 V |
| Output Impedance | 100 Ω |
| Max Shock / Max Vibration | 7000 g / 6000 g pk |
| Operating Temperature | -60 °F to 250 °F |
The device has a sensitivity of 1 mV per g.
It weighs only 3 grams.
The accelerometer can operate from –60 °F up to 250 °F.
It covers a frequency range from 1.2 Hz to 10 kHz.
