3225A1, 3225A2, 3225A3, 3225A4 belong to the same product family, with ideal low frequency response, titanium alloy housing and ceramic sensing element. The series products have a sensitivity of 200 mV/g, a measurement range of 1 Grms, a frequency response of 1 to 10000 Hz, a linearity of 5% F.S., a broadband resolution of 0.0002 Grms and a resonant frequency of 35 kHz.

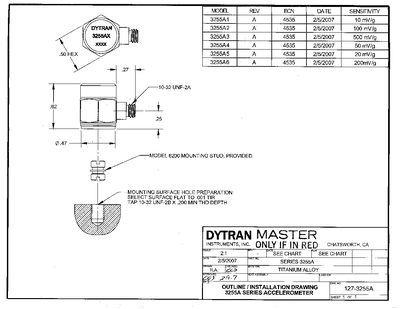

The 3255A series from Dytran includes several IEPE accelerometer models with selectable sensitivities ranging from 10 mV/g to 500 mV/g. Each model provides a hermetically sealed titanium alloy housing and a 10‑32 UNF‑2A mounting stud for easy installation.
The sheet lists detailed performance specifications such as frequency response (1 to 10 kHz), temperature range, supply current, and output impedance, along with supplied accessories like a calibration certificate (ISO 17025) and a Model 6200 mounting stud.
| Sensitivity (3255A1) | 10 mV/g |
|---|---|
| Sensitivity (3255A2) | 100 mV/g |
| Sensitivity (3255A3) | 500 mV/g |
| Frequency Response (3255A2) | 1 to 10 000 Hz |
| Supplied Mounting Stud | Model 6200, qty 1 |
Each unit includes a Model 6200 mounting stud, quantity one.
Model 3255A2 provides a frequency response from 1 Hz to 10 kHz.
Yes, an accredited calibration certificate (ISO 17025) is supplied with the product.
