The 3263AT triaxial accelerometer features IEPE output and TEDS functionality with a 40 kHz natural frequency and 500g maximum full scale.

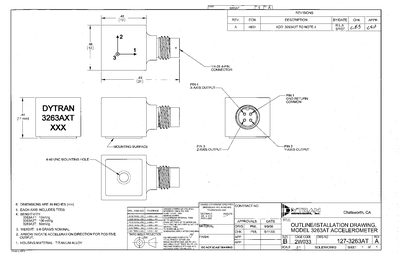

The Dytran 3263AT is a compact triaxial accelerometer equipped with TEDS for easy integration. It features a titanium‑alloy housing, a 4‑40 internal THD 4‑pin connector, and a lightweight design of 5.6 g.
Key specifications include a sensitivity of 10 mV/g (±10%), a measurement range of ±500 g per axis, frequency response from 1.5 kHz to 10 kHz, and a temperature operating range of –60 °F to +180 °F. The device complies with IEEE 1451.4 TEDS standards and requires a constant‑current IEPE power supply of 2–20 mA at 18–30 VDC.
| Weight | 5.6 grams |
|---|---|
| Size (W × H) | 0.48 × 0.48 inches |
| Mounting connector | 4‑40 internal THD 4‑pin |
| Range (full scale per axis) | ±500 g |
| Frequency response | 1.5 to 10 000 Hz |
| Electrical noise floor (1 Hz‑10 kHz) | 0.0008 grms |
| Temperature range | -60 °F to +180 °F |
| Maximum vibration | ±600 gpk |
| Maximum shock | 5000 gpk |
| Supply voltage (each axis) | +18 to +30 VDC |
It can operate from –60 °F up to +180 °F.
The accelerometer is rated for a maximum vibration of ±600 gpk.
It uses a 4‑40 internal THD 4‑pin connector.
