This product is an accelerometer with high sensitivity, wide frequency response, and fast response speed, which is suitable for a variety of measurement occasions.

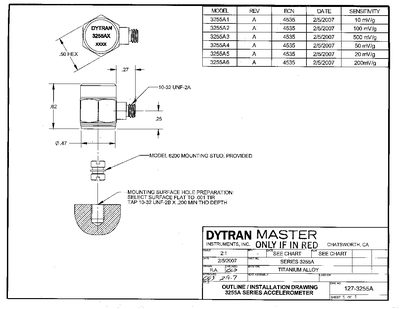

The 3255A series is a line of IEPE accelerometers offered by Dytran Master Instruments. The datasheet lists multiple model variants (3255A1‑A6) with different sensitivities and includes installation drawing information for proper mounting.
Key performance data such as sensitivity, frequency response, temperature range, and mounting provisions are presented, along with supplied accessories like a calibration certificate (ISO 17025) and a Model 6200 mounting stud.
| Frequency Response | 1 to 10000 Hz |
|---|---|
| Mounting Provision | Tapped Hole |
| Operating Temperature Range | -60 to +250 °F |
A Model 6200 mounting stud (quantity 1) is supplied with the instrument.
It can operate from –60 °F to +250 °F.
An accredited calibration certificate (ISO 17025) is supplied.
