This document is the performance specification of PS3023M30 triaxial accelerometer, which has high temperature, hermetically sealed and miniature size, with a maximum measurement range of ±500 g and a frequency response range of 1.2-5000 Hz. The linearity is 1%F.S.
The 3023M30 is a triaxial IEPE accelerometer with a titanium housing and 4‑pin connector. Its key performance figures include a sensitivity of 10 mV/g, a frequency response of 1.2 – 5000 Hz, and a maximum operating temperature of 325 °F. Electrical characteristics such as a supply voltage range of +18 to +30 VDC, output bias of 9 to 11 VDC, and an output impedance of 100 Ω are listed.

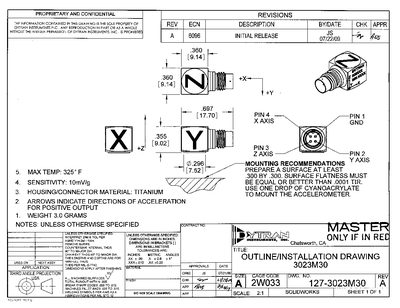

Mounting recommendations call for a flat surface of at least 0.300 × 0.300 in with flatness better than .0001 TIR, using a single drop of cyanoacrylate adhesive. The datasheet also notes supplied accessories, including an accredited ISO 17025 calibration certificate, and provides notes on connector compatibility and handling precautions.
| Maximum Temperature | 325 °F |
|---|---|
| Sensitivity | 10 mV/g |
| Weight | 0.105 oz (3.0 g) |
| Housing/Connector Material | Titanium |
| Frequency Response | 1.2 – 5000 Hz |
| Output Impedance (typ.) | 100 Ω |
| Supply Voltage Range | +18 to +30 VDC |
| Output Bias Voltage | 9 to 11 VDC |
| Discharge Time Constant | 0.3 – 0.5 s |
| Temperature Range | -60 °F to +325 °F |
| Natural Frequency | 30 kHz |
| Equivalent Electrical Noise | 0.007 grms |
The sensitivity is 10 mV per g.
The mounting surface must have flatness equal to or better than .0001 TIR.
Use one drop of cyanoacrylate to mount the accelerometer.
It operates from approximately –60 °F up to +325 °F.
