Technical specifications of the 3023M23 triaxial accelerometer, including size, weight, mounting method, connector, material, performance, frequency response, noise, linearity, signal polarity, environment, power range, output impedance, output bias voltage, discharge time constant and ground isolation.

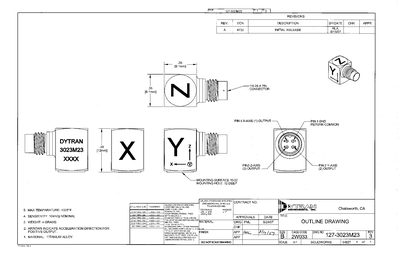

The Dytran 3023M23 is a compact tri‑axial accelerometer housed in a titanium alloy case. It provides a sensitivity of 10 mV/g and a full‑scale range of ±500 g on each axis, with positive output polarity indicated by arrows on the housing.
The device weighs 4 g, measures 0.49 × 0.36 × 0.36 in, and mounts via a 10‑32 tapped hole. It uses a 4‑pin connector compatible with Dytran cable assemblies, operates from +18 to +30 VDC, and meets environmental limits of –60 to +320 °F and up to 600 gpk vibration.
| Weight | 4 grams |
|---|---|
| Size (H × W × D) | 0.49 x .36 x .36 inch |
| Mounting | 10-32 tapped hole in base |
| Connector | 4‑pin |
| Housing material | Titanium alloy |
| Range (each axis) | ±500 g |
| Frequency response (axis 1&2) | 1.5 to 5000 Hz |
| Frequency response (axis 3) | 1.5 to 10000 Hz |
| Maximum vibration | ±600 gpk |
| Maximum shock | 5000 gpk |
| Temperature range | -60 to +320 °F |
| Supply voltage | +18 to +30 VDC |
| Output impedance | 100 ohms |
| Output bias voltage | +10 VDC |
| Discharge time constant | 0.3 sec |
Each axis measures up to ±500 g full scale.
It operates from –60 °F to +320 °F.
