Specs of the 3023A9 triaxial accelerometer, including physical properties, performance, environment, power supply

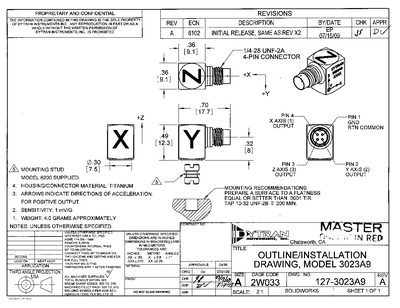

The Dytran 3023A9 is a compact triaxial accelerometer designed for high‑frequency vibration measurement. It features a titanium alloy housing and a 4‑pin connector.
The data sheet lists a weight of 4 g, dimensions of 0.49 × 0.36 × 0.36 in, mounting via a 10‑32 tapped hole, sensitivity of +10 % FS, frequency response from 0.55 Hz to 10 kHz, and a supply voltage range of +18 to +30 VDC, along with detailed electrical and environmental specifications.
| Weight | 4 grams |
|---|---|
| Size (H×W×D) | 0.49 x 0.36 x 0.36 inches |
| Mounting | 10-32 tapped hole in base |
| Connector | 4‑pin |
| Sensitivity | +10 % FS |
| Frequency response | -5 % to +15 % FS |
| Supply voltage range | +18 to +30 VDC |
| Supply current range | 2 to 20 mA |
| Output impedance (typ.) | 100 Ω |
| Output bias voltage (nom.) | +8 to +10 VDC |
| Discharge time constant (nom.) | 0.4 to 0.5 s |
| Ground isolation | Case grounded |
| Housing/connector material | Titanium alloy |
| Maximum vibration | 300 g pk |
| Maximum shock | 7000 g pk |
| Temperature range | -60 to +250 °C |
| Environmental seal | Hermetic |
The accelerometer weighs 4 grams.
It mounts with a 10‑32 tapped hole in the base.
The device operates from a supply voltage of +18 to +30 VDC.
It uses a 4‑pin connector.
