The 3023A6H accelerometer is a high temperature, high precision, high reliability accelerometer sensor. The range of the accelerometer is ±1000g, the resolution is 5mV/g, and the frequency response is 1.5 to 10000Hz. It uses a titanium alloy housing and has waterproof, dustproof and shockproof properties.

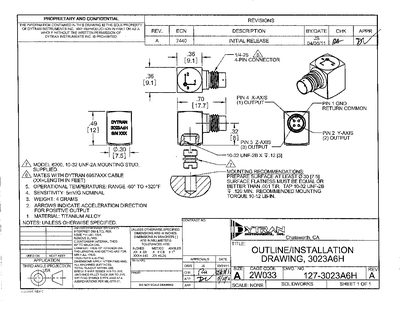

The 3023A6H is a miniature, hermetically sealed tri‑axial IEPE accelerometer designed for high‑temperature environments. It features a titanium‑alloy housing, a 4‑pin connector that mates with Dytran cable assemblies, and includes a mounting stud (Model 6200) for easy installation.
The datasheet lists key performance data such as a -60 °F to +320 °F operating temperature range, 5 mV/g sensitivity, and frequency response up to 10 kHz on each axis. Electrical specifications include a supply current of 2‑20 mA, a voltage range of +18 to +30 VDC, and a recommended mounting torque of 10‑12 lb‑in. Environmental ratings note hermetic sealing and compliance with MIL‑STD‑12 and ASME YSN‑1994 standards.
| Operational Temperature | -60 °F to +320 °F |
|---|---|
| Sensitivity | 5 mV/g (nominal) |
| Weight | 4 g |
| Material | Titanium alloy |
| Frequency Response (1‑Axis) | 4.5 Hz to 5 kHz |
| Frequency Response (3‑Axis) | 15 Hz to 10 kHz |
| Supply Current Range | 2 mA to 20 mA |
| Voltage Range | +18 VDC to +30 VDC |
| Output Bias Voltage | 7 VDC to 9 VDC |
| Maximum Shock | 5000 g pk |
| Maximum Vibration | +600 g pk |
| Recommended Mounting Torque | 10‑12 lb‑in |
It operates from -60 °F to +320 °F.
The device has a nominal sensitivity of 5 mV per g.
A torque of 10‑12 lb‑in is recommended.
The accelerometer draws between 2 mA and 20 mA.
