This is a performance specification for a triaxial accelerometer, model number 3023M27. The maximum measurement range is 500g, the sensitivity is 10mV/g, and the frequency response range is 1.2 to 5000Hz.
The 3023M27 is a miniature, hermetically sealed, high‑temperature triaxial IEPE accelerometer. It features a titanium housing, 10 mV/g sensitivity, and a measurement range of up to ±500 g per axis.

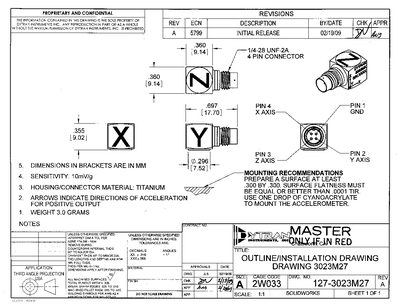

The sheet lists physical characteristics (weight 0.105 oz/3.0 g), electrical parameters (100 Ω output impedance, 21020 mA supply current range), and environmental limits (‑60 °F to +250 °F, 5000 g shock). Mounting guidance includes a flat surface of at least .300 × .300 in and one drop of cyanoacrylate adhesive.
| Sensitivity | 10 mV/g |
|---|---|
| Weight | 0.105 oz (3.0 g) |
| Range (Full Scale) | ±500 g per axis |
| Operating Temperature | -60 °F to +250 °F |
| Output Impedance | 100 Ω (typical) |
| Housing Material | Titanium |
The device has a sensitivity of 10 mV per g.
Use one drop of cyanoacrylate adhesive to mount the accelerometer.
It operates from –60 °F to +250 °F (‑51 °C to +121 °C).
