The 3255A3 acceleration sensor has a sensitivity of 10-200 mV/g, a frequency response of 1-10000Hz, a time constant of 0.5-0.8s and a working temperature of -60-250°F.

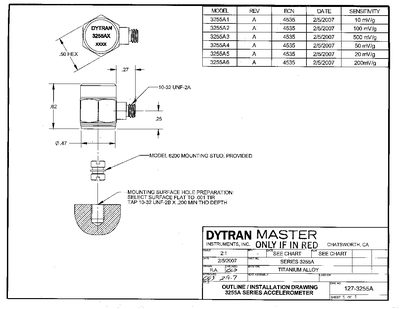

The Dytran 3255A series accelerometers are offered in several sensitivity options (10‑500 mV/g) and include a Model 6200 mounting stud for easy installation. The document provides model numbers, mounting instructions, and a drawing of the installation layout.
Performance specifications cover frequency response (1 to 10 000 Hz), temperature range (‑60 to +250 °F), and electrical characteristics such as supply current and output impedance. Additional information includes physical dimensions, connector type, and supplied accessories like a calibration certificate.
| Sensitivity (3255A1) | 10 mV/g |
|---|---|
| Sensitivity (3255A2) | 100 mV/g |
| Sensitivity (3255A3) | 500 mV/g |
| Sensitivity (3255A4) | 50 mV/g |
| Sensitivity (3255A5) | 20 mV/g |
| Sensitivity (3255A6) | 200 mV/g |
| Frequency Response | 1 to 10 000 Hz |
| Operating Temperature Range | -60 to +250 °F |
A Model 6200 mounting stud, quantity 1, is supplied.
The 3255A3 model has a sensitivity of 500 mV/g.
The series operates from 1 Hz up to 10 000 Hz.
It can operate from –60 °F to +250 °F.
