Specifications of the 3217A IEPE accelerometer, including maximum measurement range, full-scale output, maximum sensitivity, electrical natural shock (nominal) noise frequency, etc.

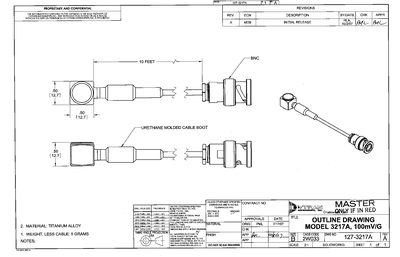

This two‑page document presents the technical specifications and mechanical details for the Dytran 3217A IEPE accelerometer. It includes key performance parameters, material information, and compliance notes for proper integration.
Key data such as frequency response, output impedance, supply current range, operating temperature limits, and physical dimensions are listed, along with mounting provisions and connector type.
| Discharge time constant (nominal) | 0.5 second |
|---|---|
| Frequency response (+10%) | 1 to 10,000 Hz |
| Output impedance (nominal) | 120 Ω |
| Output voltage bias (nominal) | +12 VDC |
| Supply current range | 2 to 20 mA |
| Compliance (supply) voltage range | +18 to +20 VDC |
| Operating temperature range | -60 to +250 °F |
| Size (W × H) | 0.50 × 0.50 inches |
| Weight (less cable) | 5 g |
| Connector type | Side‑exit integral, 10 ft cable |
| Housing material | Titanium alloy |
The sensor operates from 1 Hz up to 10 kHz (+10% tolerance).
It can be used from –60 °F to +250 °F.
The nominal output impedance is 120 Ω.
The sensor measures 0.50 × 0.50 inches (width by height).
