Specifications of the 3056B IEPE accelerometer, including weight, size, mounting method, electrical connection, material, performance, environment, electrical, etc.

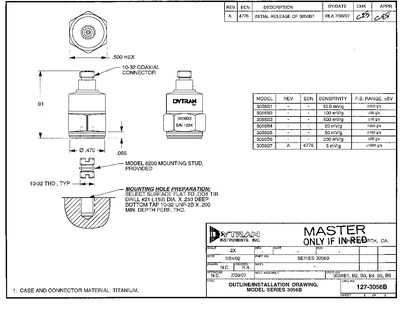

The Dytran 3056B series IEPE accelerometers are compact sensors designed for high‑frequency vibration measurement. This datasheet provides detailed physical dimensions, mounting provisions, and material construction for each model in the series.
Performance specifications cover sensitivity, frequency range, resonant frequency, noise, linearity, and environmental limits such as temperature and shock. Electrical characteristics include supply current, compliance voltage, output impedance, bias voltage, and isolation requirements.
| Weight | 10 grams |
|---|---|
| Size (hex) | 0.50 x 0.91 inches |
| Mounting provision | 10-32 x .150 deep tapped hole |
| Connector material | Titanium |
| Resonant frequency (nominal) | 32 kHz |
| Frequency range | 1 to 10,000 Hz |
| Temperature range | -60 to +250 °F |
| Maximum shock | 3000 gpk (varies by model) |
The nominal resonant frequency is 32 kHz.
They can operate from –60 °F to +250 °F.
The typical output impedance is 100 Ω.
The device draws 2 to 20 mA.
